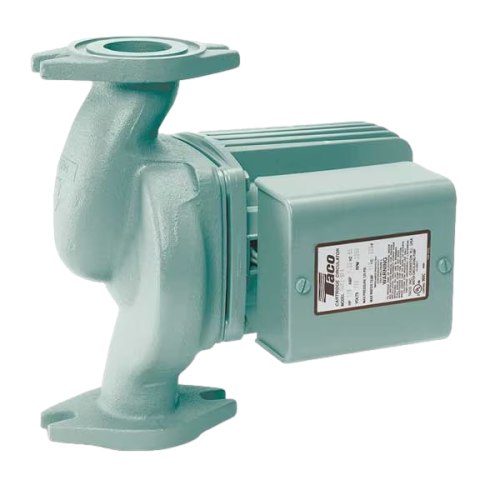

Taco 0012-F4 0012 Cast Iron Circulator 1/8 HP

Taco 0012-F4 0012 Cast Iron Circulator 1/8 HP (High Velocity Equivalent).

The Taco 0012-F4 is a high-capacity cast iron circulator pump (1/8 HP, 115V) designed for hydronic heating and cooling systems that require higher flow rates. It delivers up to 50 GPM with a maximum head of 14.5 ft, making it ideal for larger residential and light commercial applications

Flanges sold separately if not included. Size 1-1/2" pipe size.

Features:

• Exclusive ACB (Anti-Condensate Baffle): Protects motor windings against condensate buildup.

• High-velocity performance: Compact design optimized for higher flow applications.

• Replaceable cartridge: All moving parts are contained in a field-serviceable cartridge for easy maintenance.

• Quiet, efficient operation: Wet-rotor design eliminates mechanical seals.

• Self-lubricating: Maintenance-free, long-lasting performance.

• Universal flange-to-flange dimensions: Easy swap with other Taco 00 Series pumps.

• Construction options: Cast iron for closed-loop heating, stainless steel or bronze for domestic water systems
