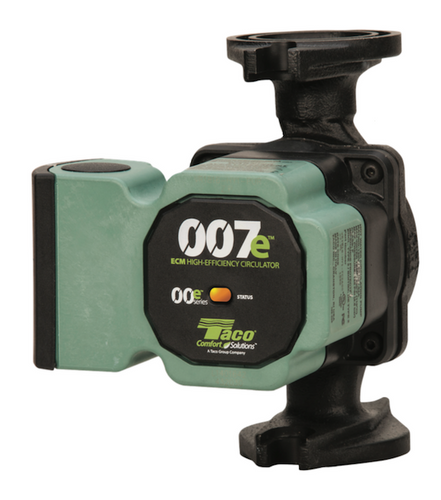

Taco 007E-2F2 007E ECM High Efficiency Cast Iron Circulator with IFC, Standard Flange (1 Phase 120V, 60Hz)
The Taco 007E-2F2 is a high-efficiency ECM circulator pump with a cast iron body and integral flow check, designed for hydronic heating systems. It delivers the same performance as the classic Taco 007 but uses up to 85% less electricity.
Flanges sold separately if not included. Sizes 3/4", 1", 1-1/4", and 1-1/2" pipe size.
Features:
-
BIO Barrier® (Cast Iron models): Shields the circulator from harmful system contaminants for longer service life.
-
SureStart® technology: Taco’s exclusive safeguard that automatically purges trapped air and clears blockages, ensuring trouble-free operation without callbacks.
-
Installer-friendly design: The 007e is built to simplify your work with:
-
Dual electrical knockouts for flexible wiring options
-
6″ stranded wire leads for quick, easy connections
-
Double insulation, eliminating the need for a ground wire
-
-
Integral Flow Check (IFC): Built-in protection against reverse and gravity flow, reducing installation time and cost.
-
Durable cast iron casing: Provides strength and reliability for closed-loop hydronic heating applications.
- Manufacturer:
- Taco
- Part Number:
- 007E-2F2
- HP:
- Variable Speed
- Volts:
- 120V
- Amps:
- 0.54A
- RPM:
- Variable Speed
- Flow Rate:
- 0-16 GPM
- Max Head:
- 10 ft.
- Max Pressure:
- 125 PSI
- Series:
- 007
- Temp. Range:
- 36°F – 230°F
- Material:
- Cast Iron
