*The default options are set to Wall Thickness 4" and C Inlet. Please make sure you select the correct wall thickness and inlet type for your hydrant

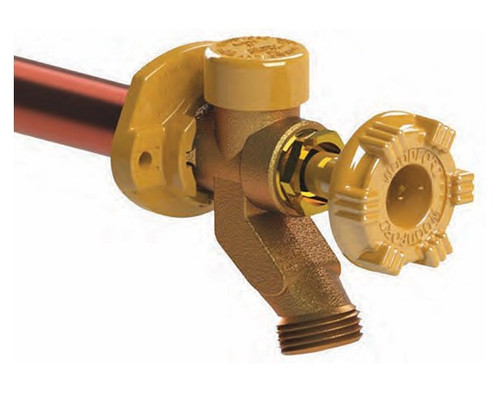

The Freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed.
The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker. This ASSE 1019 device is intended for irrigation use and outdoor watering and shall not be subjected to more than (12)hours of continuous water pressure.
WARNING - Faucet must be installed with downward pitch toward nozzle and hose must be removed in freezing weather or faucet may freeze and burst. Not intended for continuous use applications.
Features:
- 3/4” male hose thread nozzle
- Stainless steel seat - eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No-lead solder
- Standard “O” size seat washer
- Oval, Powder-coated, die cast aluminum handle
- Wall Thickness from 4" to 24"
- Adjustable polycarbonate wall flange
- MAX PRESSURE - 125 psi
- MAX TEMPERATURE - 120° F
* Total Length is calculated as Wall Thickness + Inlet Length
- Manufacturer:
- Woodford
- Building Type:
- Residential
- Fixture Type:
- Wall Faucet
- Model Number:
- Model 17
- Finish:
- Rough Brass
- Handle Type:
- Round
- Anti-Siphon:
- Yes
- Auto Draining:
- No
- Backflow Prevention:
- Yes
- Max Pressure:
- 125 psi
- Max Temperature:
- 120° F
