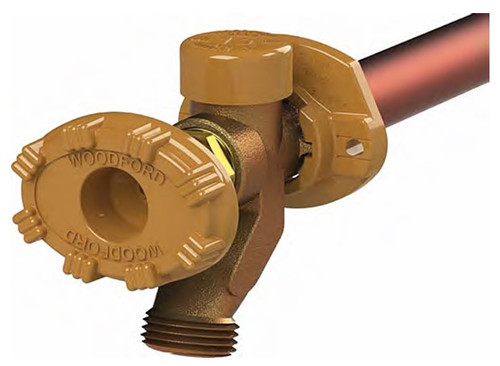

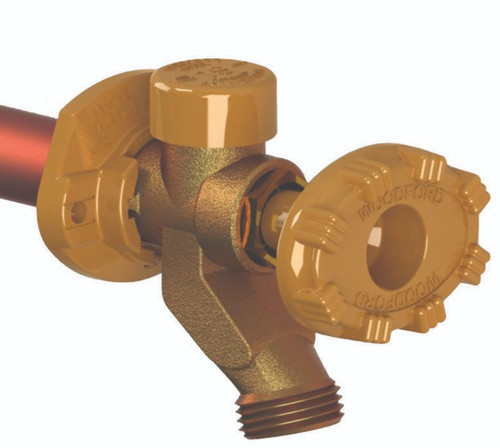

Woodford Model 19 - Freezeless Anti-Siphon Residential Wall Faucet

* Please make sure you select the correct wall thickness, inlet type and handle type for your hydrant.

This unit offers anti-siphon and non-rupture protection.

The Freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.

This ASSE 1019 device is intended for irrigation use and outdoor watering and shall not be subjected to more than (12) hours of continuous water pressure.

WARNING - Faucet must be installed with downward pitch toward nozzle and hose must be removed in freezing weather or faucet may freeze and burst. Not intended for continuous use applications.

Features:

• Patented resetting pressure relief valve prevents the
  faucet casing tube from bursting in freezing conditions
  even if a hose is unintentionally left on.
• 3/4” male hose thread nozzle
• Stainless steel seat - eliminates wire draw
• EPDM packing to prevent leaking
• Full circle operating threads on valve body and retainer
• No-lead solder
• Standard “O” size seat washer
• Oval, Powder-coated, die cast aluminum handle
• Wall Thickness from 4" to 24"
• Adjustable polycarbonate wall flange
• MAX PRESSURE - 125 psi
• MAX TEMPERATURE - 120° F

* Total Length is calculated as Wall Thickness + Inlet Length
