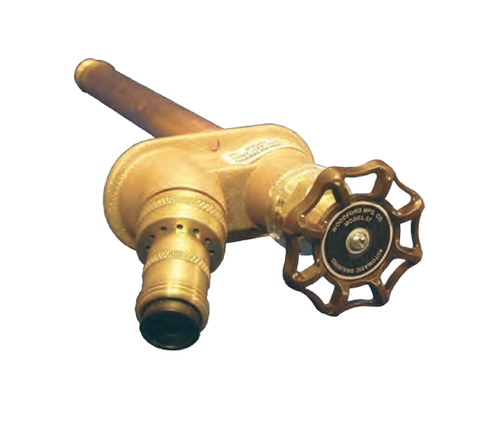

Woodford Model 27 - Backflow Protected - Automatic Draining - Freezeless Wall Faucet
*The default options are set to Wall Thickness 4" and C Inlet. Please make sure you select the correct wall thickness and inlet type for your hydrant
The Woodford Model 27 drains as handle is shut off even if hose is attached. This faucet is designed for outside residential water service applications and intended for irrigation purposes.
MODEL 50HA BACKFLOW PREVENTER
- ASSE 1052 Approved
- Listed by IAPMO
- Field Testable
- Two Independent Check Valves
- Drains automatically when hose is removed
- No spray back
NOTICE - To close and drain, turn handle clockwise until seated and water drains out of the drain hole or faucet may freeze and burst. Vacuum Breaker replacement is recommended every 3-5 years.
Features:
- 3/4” male hose thread nozzle
- No-lead solder
- Molded nitrile valve suitable for hot water
- Round, Metal Handle
- Wall Thickness from 4" to 24"
- Hemispherical cushion type plunger
- DELRIN stem screw
- Brass head nut
- MAX PRESSURE - 125 psi
- MAX TEMPERATURE - 120° F
* Total Length is calculated as Wall Thickness + Inlet Length
Model 27 Spec Sheet
Model 27 Installation Guide
Not the wall faucet or hydrant you need? Try the Woodford product guide.
Woodford Product Guide
- Manufacturer:
- Woodford
- Building Type:
- Residential
- Fixture Type:
- Wall Faucet
- Model Number:
- Model 27
- Finish:
- Rough Brass
- Handle Type:
- Round
- Anti-Siphon:
- Yes
- Auto Draining:
- Yes
- Backflow Prevention:
- Yes
- Max Pressure:
- 125 psi
- Max Temperature:
- 120° F
