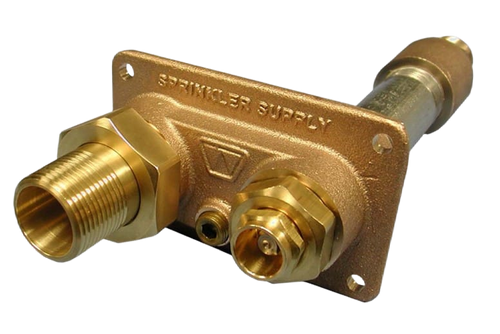

Woodford Model 32 - Freezeless Lawn Sprinkler Supply Wall Hydrant

*The default options are set to Wall Thickness 4" and C Inlet. Please make sure you select the correct wall thickness and inlet type for your hydrant

The Woodford Lawn Sprinkler Supply is designed for irrigation purposes to be used as the supply valve for lawn sprinkler systems. This unit can also be used as a water supply for water features, decorative ponds, etc. It can be used in conjunction with any reduced pressure backflow preventer, double check, or pressure vacuum breaker that protects the system from backflow.

The Model 32 provides outside access to the water supply for start-up, winterizing, and servicing the lawn sprinkler system. Installation of the Model 32 reduces the time spent in scheduling service calls or multiple visits and does not require the contractor to enter the residence. The Model 32 is key operated and utilizes a removable drain plug allowing the service contractor to winterize the system at anytime protecting the property owner’s investment.

This unit offers anti-siphon protection.

Features:

• Patented resetting pressure relief valve prevents the
  faucet casing tube from bursting in freezing conditions
  even if a hose is unintentionally left on.
• IAPMO Listed
• Head Casting Fits Flush Against Wall
• Provides Freezeless Lawn Sprinkler Supply System Shut Off With Outside Access
• Allows For Convenient Scheduling By Servicing Contrac tors For Start-Up, Servicing, Or Winterization Of Lawn Sprinkler System Without Entering The Home
• Key Operated For Tamper Resistant Protection
• Rough Brass Exterior Finish
• Epdm Packing With Adjustable Packing Nut
• Wall Thickness from 4" to 24"
• Hardened Stainless Steel Valve Stem
• Permanent Brass Valve Body With Large Hemispherical Seating Surface.
• Solid Brass Operating Rod
• 1” Galvanized Steel Pipe Casing
• Red Brass Castings
• 2 Inlet Options: P Inlet: Combination ¾″ FPT & 1″ MPT and C Inlet: ¾″ Copper Sweat Valve Body
• ¾″ Union Outlet Connection Provided
• Optional 1″ NPT Union Outlet Connection add feature -1IN
• ¼″ NPT Socket Head Manual Drain Plug
• Optional 32-BF Beveled Flange Spacer
• MAX PRESSURE - 125 psi
• MAX TEMPERATURE - 120° F

* Total Length is calculated as Wall Thickness + Inlet Length
