* Please make sure you select the correct wall thickness, inlet type and key type for your hydrant.

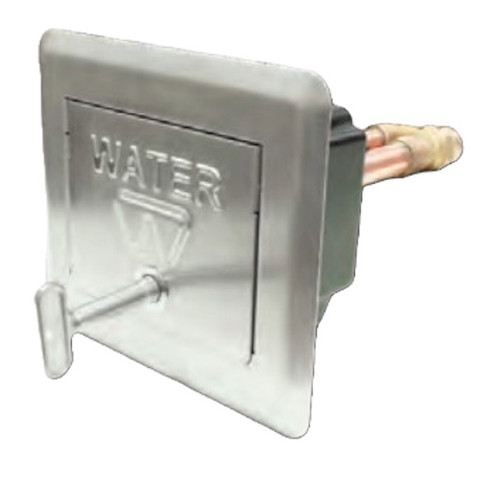

Woodford Model MB65 - Modular Box- Anti-Siphon Freezeless Wall Hydrant

The Woodford MB65 is a freezeless commercial wall hydrants housed in a secure modular box with a replaceable door and fascia assembly. Hydrant drains as handle is shut off, even if hose is attached. Intended for irrigation purposes. Door and Fascia replaceable without removing box. Box made out of high impact and non-degradable composite material.

Hydrant Specifications:

• ASSE Standard 1019-B
• Listed by IAPMO
• Meets Government Specification WW-P-541b

Vacuum Breaker - Anti-Siphon:

• NIDEL Model 34HA with ¾ inch male hose thread
• Approved under ASSE 1011
• Listed by IAPMO

Finish:

• Standard: Rough Chrome

Two door lock styles

• Standard: Loose Tee key
• Optional: Cylinder Lock with key

Features:

• 3/4” male hose thread nozzle
• Wall Thickness from 4" to 24"
• Permanent type brass valve body with hemispherical seating surface.
• One piece valve plunger accurately controls both flow and drainage with a minimum number of turns and without need for adjustments.
• Drains under nozzle away from hands of operator and with a lip to divert water away from building.
• Copper casing tubes.
• No Lead Solder - All solder joints.
• Stem – Hardened stainless steel stem resists damage.
• Loose key operates hydrant.
• 3/8” solid brass operating rod.
• MAX PRESSURE - 125 psi.
• MAX TEMPERATURE - 120° F

Model MB65 Spec Sheet
Model MB65 Installation Guide

Not the wall faucet or hydrant you need? Try the Woodford product guide.
Woodford Product Guide
