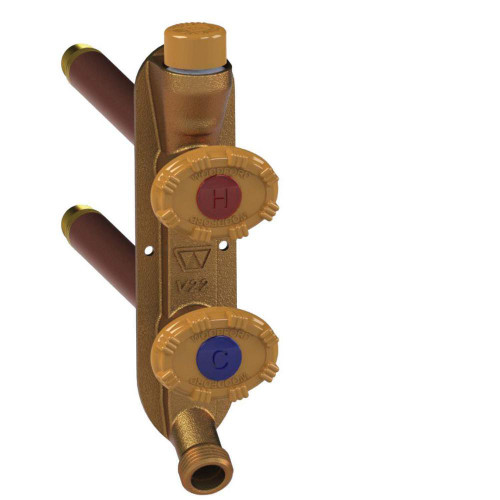

Woodford V22P-6-MH Model V22 Freezeless Combination Pipe Thread Inlet Wall Faucet.

FEATURES:

• Built-In Vent Float style Vacuum Breaker

• Faucet drains automatically when hose is removed

• EPDM packing to prevent leaking

• Oval, powder-coated, die cast aluminum handle

• Stainless steel seat - eliminates wire draw

• Standard “O” size seat washer

• Tee Key configuration - (extra charge)

• No-lead solder

• 3/4” male hose thread

MAX PRESSURE - 125 p.s.i.

MAX TEMPERATURE - 120° F

• Model V22 Vertical Mount - Rough Brass for end wall installation

INSTALLATION REQUIREMENTS:

• The faucet length used is to be comparable to what would be used with standard freezeless faucets.

• The inlet connection must be located in a heated area.

• The gap between the house and faucet must be sealed to prevent air leaks.

• The faucet must be installed with a slight downward pitch toward the nozzle.

• Adequate insulation is required around the faucet, wall board and sill plate.

New York Replacement Parts is a proud distributor of Woodford products. This Woodford Model V22 Wall Faucet is a direct replacement manufactured by Woodford. Order this Woodford Model V22 Wall Faucet today.
