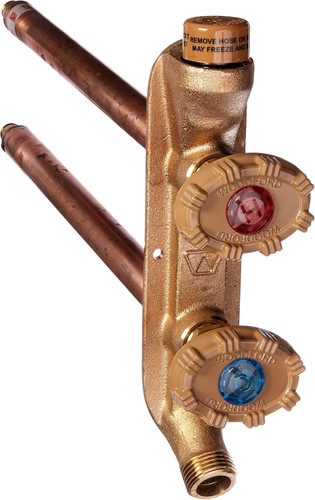

Woodford Model V22 - Vertical Freezeless Hot & Cold Wall Faucet

*The default options are set to Wall Thickness 4" and C Inlet. Please make sure you select the correct wall thickness and inlet type for your hydrant

This unit offers anti-siphon protection and pressure relief valves.

The Freezeless Model V22 hot and cold faucet is designed and intended for year-round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection.

This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The Model V22 contains an integral backflow protection device and does not require an add-on vacuum breaker.

This ASSE 1019 device in intended for irrigation use and outdoor watering and shall not be subjected to more than (12) hours of continuous water pressure.

WARNING - Faucet must be installed with downward pitch toward nozzle and hose must be removed in freezing weather or faucet may freeze and burst. Not intended for continuous use applications.

Features:

• Patented resetting pressure relief valve prevents the
  faucet tube from bursting in freezing conditions
  even if a hose is unintentionally left on.
• Built-In Vent Float Style Vacuum Breaker
• Faucet drains automatically when hose is removed
• 3/4” male hose thread nozzle
• Stainless steel seat - eliminates wire draw
• EPDM packing to prevent leaking
• No-lead solder
• Standard “O” size seat washer
• Oval, Powder-coated, die cast aluminum handle
• Wall Thickness from 4" to 24"
• MAX PRESSURE - 125 psi
• MAX TEMPERATURE - 120° F

* Total Length is calculated as Wall Thickness + Inlet Length

View Model V22 Spec Sheet
