Description

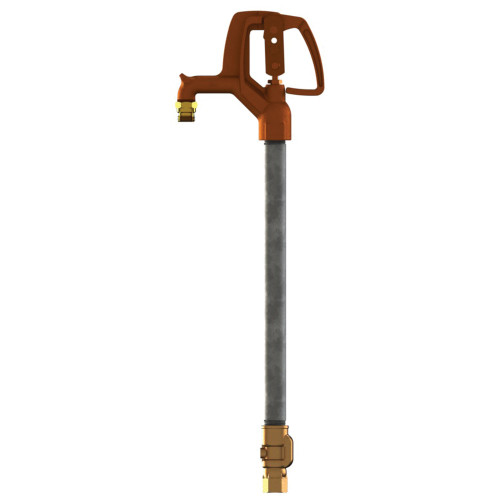

Woodford Model W34 - Freezeless Yard Hydrant
The Woodford W34 hydrant is intended for irrigation purposes and used for filling field spray equipment, cleaning tools and equipment, lawn and garden care, watering livestock, fire protection - immediate water flow even in sub-zero temperatures.
Features:
- One Piece Variable Flow Plunger - Large cushion type seal for longer life - is not easily damaged and assures shut-off even when foreign particles are present.
- Maintenance & Repair - All repairs can be made from top of unit without removing hydrant from the ground.
- Long Life Packing - Graphite packing for lubricity and long life.
- Long Life Valve Seat - Special shape - large contact area - eliminates need for renewable nylon seat.
- Female Inlet: 3/4" NPT Female
- Nozzle: 3/4" removable brass hose nozzle
- Casing: 1" Galvanized steel pipe
- Operating Rod: 3/8" Steel rod
- Drain Hole: Tapped - 1/8" NPT.
- Tamperproof Lock: Can be padlocked in closed position
- Max Pressure - 125 psi
- Max Temperature - 120° F
W34 Specification Sheet
W34 Installation Guide
Not the wall faucet or hydrant you need? Try the Woodford product guide.
Woodford Product Guide
Specs
- Manufacturer:
- Woodford
- Building Type:
- Commercial
- Fixture Type:
- Yard Hydrant
- Model Number:
- W34
- Anti-Siphon:
- No
- Auto Draining:
- No
- Backflow Protection:
- No
- Max Pressure:
- 125 psi
- Max Temperature:
- 120° F
- Inlet Type:
- 3/4" NPT Female
- Outlet Type:
- 3/4" Male Hose Thread
- Finish:
- Red
