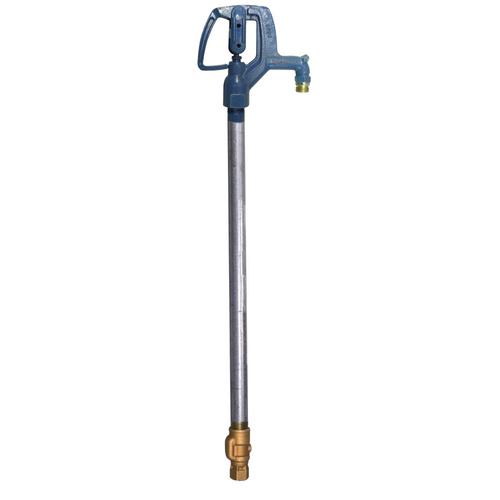

Woodford Model X34 - Freezeless Yard Hydrant
The Woodford X34 Freezeless Yard Hydrant is intended for irrigation purposes and immediate water flow even in sub-zero temperatures. Applications include filling field spray equipment, cleaning tools and equipment, lawn and garden care, watering livestock, fire protection and more.
Features:
- One Piece Variable Flow Plunger - Large cushion type seal for longer life - is not easily damaged and assures shut-off even when foreign particles are present.
- Automatic Drain Feature - Plunger opens drain when shut off to prevent freezing.
- Maintenance & Repair - All repairs can be made from top of unit without removing hydrant from the ground.
- Long Life Packing - Graphite packing for lubricity and long life.
- Long Life Valve Seat - Special shape - large contact area - eliminates need for renewable nylon seat.
- Female Inlet: 3/4" NPT Female
- Nozzle: 3/4" removable brass hose nozzle
- Casing: 1" Galvanized steel pipe
- Operating Rod: 3/8" Steel rod
- Drain Hole: Tapped - 1/8" NPT.
- Tamperproof Lock: Can be padlocked in closed position
- Max Pressure - 125 psi
- Max Temperature - 120° F
X34 Specification Sheet
X34 Installation Guide
Not the wall faucet or hydrant you need? Try the Woodford product guide.
Woodford Product Guide
Specs
- Manufacturer:
- Woodford
- Building Type:
- Commercial
- Fixture Type:
- Yard Hydrant
- Model Number:
- X34
- Anti-Siphon:
- No
- Auto Draining:
- Yes
- Backflow Protection:
- No
- Max Pressure:
- 125 psi
- Max Temperature:
- 120° F
- Inlet Type:
- 3/4" NPT Female
- Outlet Type:
- 3/4" Male Hose Thread
- Finish:
- Blue
