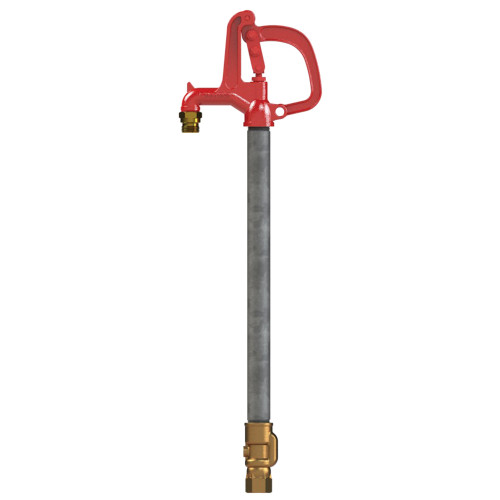

Woodford Model R34 - Freezeless Yard Hydrant

The Woodford R34 Freezeless yard hydrant is intended for irrigation purposes and offers immediate water flow even in sub-zero temperatures. The R34 can be used for many applications such as filling field spray equipment, cleaning equipment or tools, livestock watering, garden and lawn care. The shut-off valve for the hydrant is below the frost line when installed properly, which allows the water in the standpipe to drain out a hole in the valve body. When the hydrant is shut-off, and all devices removed from nozzle, the hydrant will drain and not freeze.

Features:

• Head & Handle: Ductile iron
• All Metal Construction: No plastic components
• Packing: Graphite for lubricity and long life
• Valve Seat: Permanent brass valve body with large hemispherical seating surface.
• Operation: 90° handle lift for full oni
• Nozzle: 3/4" brass hose nozzle
• Casing: 1" Galvanized steel pipe
• Inlet Specification: 3/4” FPT
• Operating Rod: 3/8" Steel rod
• Drain Hole: Tapped - 1/8" NPT.
• Adjustable Pivot Block: Provides easy and positive adjustment of the lever lock in tension
• Tamperproof Lock: Can be padlocked in closed position
• Max Pressure - 125 psi
• Max Temperature - 120° F

R34 Specification Sheet
R34 Installation Guide
